- Click a machine to learn more -

L Series Image.jpg

L Series

Universal platform for reliable core production. With an open C-frame design, the L Series accommodates a large range of corebox dimensions, providing you the capability to run up to 6-parted tooling – far exceeding expectations. Available in 4 standard platforms, with shoot volumes ranging from 1 to 150 liters. A true all-rounder.

  • Protective cabin enclosure

  • Ergonomic core removal

  • Vertical and Horizontal Tooling; combination up to 6-Parted Tooling

  • Pneumatic & Optional Hydraulic Connections for Tooling Loose Pieces

  • Continuous Hydraulic Clamping of Corebox

  • Streamlined core production control through single HMI controller



LL Series

Capable of 150 cycles per hour.  The rocket ship of small and medium core work in the foundry industry.  The LL CoreShooter comes in 2 sizes:  LL10 and LL20.  Capable of running coreboxes of vertical, horizontal and combination-thereof design.  With simple economical conversions, the LL Series easily adapts pre-existing tooling of wood, plastic, aluminum or iron, all within a compact footprint.

  • Machine integrated protective cabin enclosure
  • Hydraulic Unit, Gas Generator, Pneumatics and Control Cabinet integrated into machine enclosure
  • Ergonomic core removal
  • Vertical and Horizontal Tooling; combination up to 6-Parted Tooling
  • Pneumatic & Optional Hydraulic Connections for Tooling Loose Pieces
  • Continuous Hydraulic Clamping of Corebox
  • Streamlined core production control through single HMI controller

LFB Series Image.jpg

LFB Series

Robust for high production.  The 4-column table guides, two decentralized hydraulic lifting cylinders and solid steel base-frame are at the foundation of the LFB CoreShooter.  Hydraulic corebox latching and clamping of the tooling sets you up for quick repeatable core production.  Customizable platforms with shooting volumes of 25 to 200 liters – an industry standard.

  • Machine integrated protective cabin enclosure

  • Ergonomic core removal

  • Single or multiple shoot head

  • Vertical and Horizontal Tooling; combination up to 6-Parted Tooling

  • Pneumatic & Optional Hydraulic Connections for Automatic Tooling Loose Pieces

  • Continuous Hydraulic Clamping of Corebox

  • Automatic corebox loading

  • Streamlined core production control through single HMI controller

  • Automatic Tool Changer available for LFB and LHL Series


LHL Series Image.jpg

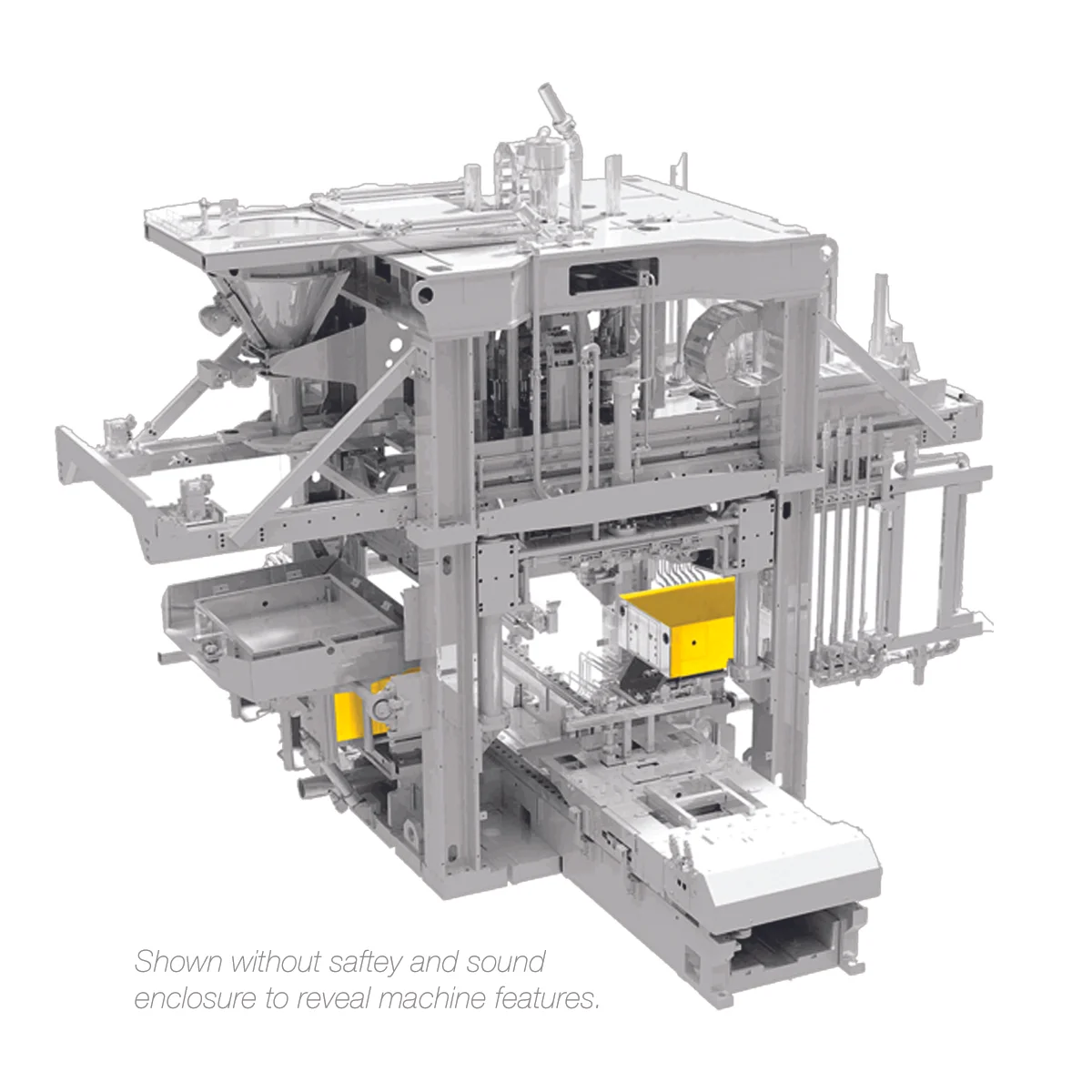

LHL Series

LHL Series is top of the range. With extremely fast cycle time, thanks to solid design, the LHL-series automatic core shooters can cope with the most challenging of tasks thanks to their high-performance hydraulics, mobile injection unit, and completely automatic, fast tool change function.

  • Suitable for processing tools with up to 6 parts

  • Core removal via upper or lower section

  • Flexible tool holder system

  • User friendly control system with automatic fault diagnostics

  • Cleaning station

  • High-performance machine for 24-hour continuous operation

  • Single or multiple shoot heads

  • Indexing shoot head - easy sand removal

  • Shoot volumes of 30 to 200 litres

  • Quick cycle time

  • Solid design

  • Tool changer

LVM Mixer

A good core starts here.  The LVM mixer delivers a homogeneous mix at short mixing cycle time.  Compact in design.  Economical in upkeep – no pumps, limited moving parts.  Unmatched in performance.

  • Volumetric sand dosing

  • Volumetric binder dosing

  • Customizable platform to accommodate multiple sands and additive medians

  • Optional Weight Cell Sand Dosing and Ultrasonic Binder Dosing systems for unlimited range of mix recipes



LVMD Mixer

The LVMD mixer series is suitable for volumetric dosing of sand, binders and additives. The mixing chamber consists of two interconnected mixing chambers with counter-rotating mixing blades. This results in a highly effective vortex mixing zone in the middle of the mixer, which creates a homogeneous mixture quickly and in a material-friendly manner. Due to its characteristics, this mixer series provides a very economical solution.

Gas Generator Image.jpg

 Gas Generator LG

Accurate and repeatable.  Absolute control of your core curing process characterized by short gassing times and low amine consumption.

  • Volumetric dosage

  • Variable pressure regulation during gassing process via program controlled proportional valve

  • Temperatures up to 170 C

  • Central amine supply level measurement system for continuous trouble-free amine supply



Gas Generator LGI

  • High-precision dosing system with highest reproducibility

  • Flow rate measurement by impulse turbine with actual visualisation

  • Fill level visualisation with large temporary storage in transparent dosing container

  • Pressure rated vaporizer/heater unit with stepless adjustable temperature setting and actual visualisation

  • Amine amount calculation of the core weight and catalyst type selection

  • Dosing cabinet cooling

  • Own controller via touch display with recipe management

  • Easy parameter input for catalyst amount and flushing pressure process

  • ATEX-compliant design

  • Energy-efficient heating for consistently high flushing air temperature

  • Actual visualisation of the flushing air temperature
